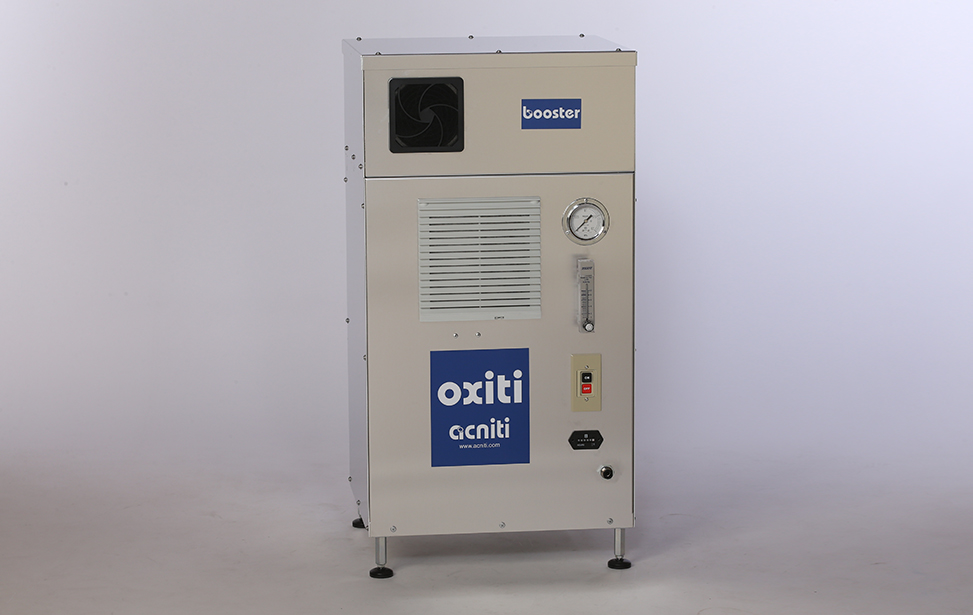

industrial booster oxygen concentrator specs 5 LPM 115V
spec sheet Oxiti Industrial oxygen concentrator for aeration, water treatment in pond lakes fish cultivation and aquaculture for the American Market
Back to: Oxiti Booster
| Description | Metric | Imperial | |
|---|---|---|---|
| 1 | Model name | industrial booster oxygen concentrator 5 LPM 115V | industrial booster oxygen concentrator 5 LPM 115V |
| 2 | Model number | O2_OXITI-05-booster-115V | O2_OXITI-05-booster-115V |
| Ambient | Metric | Imperial | |
| 3 | Ambient temperature minimum | 10 ℃ | 50 ℉ |
| 4 | Ambient temperature maximum | 40 ℃ | 104 ℉ |
| 5 | Relative humidity minimum | 15 % | 15 % |
| 6 | Relative humidity maximum | 95 % | 95 % |
| Gas | Metric | Imperial | |
| 7 | Minimum flow / minute | 1.0 Liter | 0.3 Gallon |
| 8 | Maximum flow / minute | 5.0 Liter | 1.3 Gallon |
| 9 | Minimum flow / hour | 60 Liter | 16 Gallon |
| 10 | Maximum flow / hour | 300 Liter | 79 Gallon |
| 11 | Pressure minimum | 35 kPa | 5 PSI |
| 12 | Pressure maximum | 400 kPa | 58 PSI |
| 13 | Gas quality | 87% to 96% Oxygen | 87% to 96% Oxygen |
| 14 | Gas remark | ambient air | ambient air |
| Electrical | Metric | Imperial | |
| 15 | Unit phase Ø voltage | 1 Ø 115 VAC 60 Hz | 1 Ø 115 VAC 60 Hz |
| 16 | Unit power consumption | 1320 watts 60 Hz | 1320 watts 60 Hz |
| Connections | Metric | Imperial | |
| 17 | Gas inlet | 10 mm push to connect fitting or 3/8" on request | 10 mm push to connect fitting or 3/8" on request |
| Dimensions & weight | Metric | Imperial | |
| 18 | Dim. (w) x (d) x (h) | 480 x 460 x 690 mm | 18.9 x 18.1 x 27.2 inch |
| 19 | weight | 36 Kg | 79.4 lbs. |
| 20 | Shipping dim. (w)x(d)x(h) | 53 x 52 x 70 cm | 21 x 20 x 28 inch |
| 21 | Shipping weight | 39 Kg | 86 lbs. |
